Glass Processing

Scaling-up Glass Processing with Beam-shaping

By generating a Bessel beam with a reflective axicon the Bessel profile is closer to theory and more stable at high power and energy. This enables to process faster (x5 through a scanner) and to drill smaller channel (/2 compared to standard axicon, which meant 107nm channels drilling). Besides tuned Bessel profile enables sharp transition while drilling.

Bandeau Application Glass Processing 1260x350

CANUNDA-AXICON

With increasing demands for screen quality, the improvement of glass processes is crucial. Reflective bessel’s beams allow us to sculpt glass with a very high precision (-20% ablate coating width) and faster (X5 Cutting speed) compared to refractive axicons.

The solution developed by Cailabs is CANUNDA-AXICON, a reflective, off-axis axicon.  The reflective design of this one-of-a-kind axicon is what sets it apart from conventional axicons. It can withstand higher energy pulses and higher average powers from the input laser, making it suitable for demanding material processing use.

It can also be used to avoid many undesirable phenomena such as chromatic dispersion, chromatic aberrations and focus shifts, making it a perfect, stable, and robust solution to produce Bessel beams with Ultra-Short Pulse lasers for industrial glass processing.

Cailabs Canunda Axicon Argente Detoure Bd 750x500
Canunda Axicon

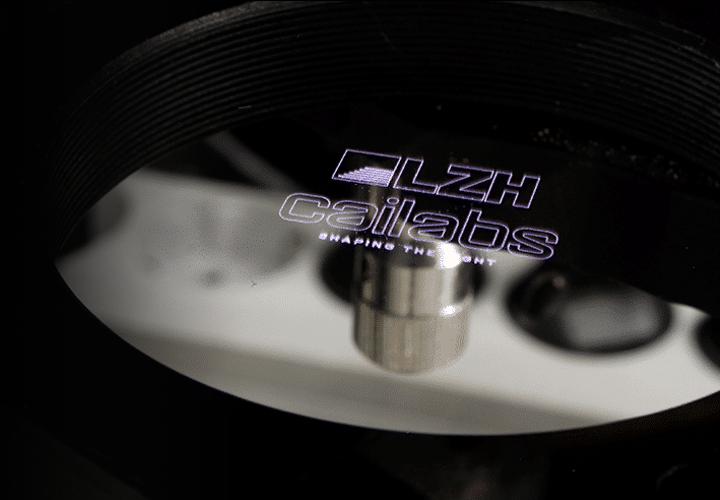

Lzh 01
Resultat Lzh
Bessel Shape
Glass Cutting 01
Glass Cutting 02

This remarkable stability allows CANUNDA-AXICON to be compatible with standard industry scanners. Besides CANUNDA-AXICON-Z-FLAT module generates a flat (over the propagation) Bessel beam with sharp (x3 sharper) transition length with an increased homogeneity (x1.5)

CANUNDA-AXICON Brochure

We offer customized, flexible solutions to suit a variety of glass processing requirements (different bessel sizes…). Each of our products is meticulously tailored to your industrial environment (F-Theta, scanner, microscope), offering seamless compatibility with all types of pulse laser.

Videos

Cailabs and LZH collaborate to improve laser glass cutting with CANUNDA-AXICON

CANUNDA-PULSE & CANUNDA-AXICON process results with LASEA, CEIT, and LZH

CANUNDA-AXICON – High quality Bessel beam for glass cutting [English]

WEBINAR REPLAY: Cailabs & LZH – Large area high quality glass cutting with fs Bessel beams [EN]

Webinar replay: Large area high quality glass cutting with femtosecond Bessel beams

Industrial Integration of CANUNDA AXICON

Start process Replay
1 2 3 4 5 6 7 8 9 10
Fermer
Laser







 Fermer
Alignment mirrors
Fermer
L1
Fermer
L2 En savoir plus
Fermer
CANUNDA-AXICON
Fermer
L3
Fermer
Galvo-scanner
Fermer
F-theta
Fermer
Glass sheet
Fermer
Bessel Beam
Bessel beam intensity profile
1







Case Studies

Coherent, USA FEMTO-ST, France LZH, Germany

Customize your CANUNDA

Make Your Canunda

Configure your own custom solution for glass processing

Make your CANUNDA

AXICON Catalog

The CANUNDA-AXICON catalog offers a broad range of standard products from 0.25° to 3° apex angle over a bandwidth ranging from ultraviolet to infrared.

Product Code
AX-025-25-B
0,25
25,4
480-580nm
AX-025-25-C
0,25
25,4
750-850nm
AX-025-25-D
0,25
25,4
1000-1100nm
AX-05-25-B
0,5
25,4
480-580nm
AX-05-25-C
0,5
25,4
750-850nm
AX-05-25-D
0,5
25,4
1000-1100nm
AX-1-25-B
1
25,4
480-580nm
AX-1-25-C
1
25,4
750-850nm
AX-1-25-D
1
25,4
1000-1100nm
AX-2-25-B
2
25,4
480-580nm
AX-2-25-C
2
25,4
750-850nm
AX-2-25-D
2
25,4
1000-1100nm
AX-3-25-B
3
25,4
480-580nm
AX-3-25-C
3
25,4
750-850nm
AX-3-25-D
3
25,4
1000-1100nm
